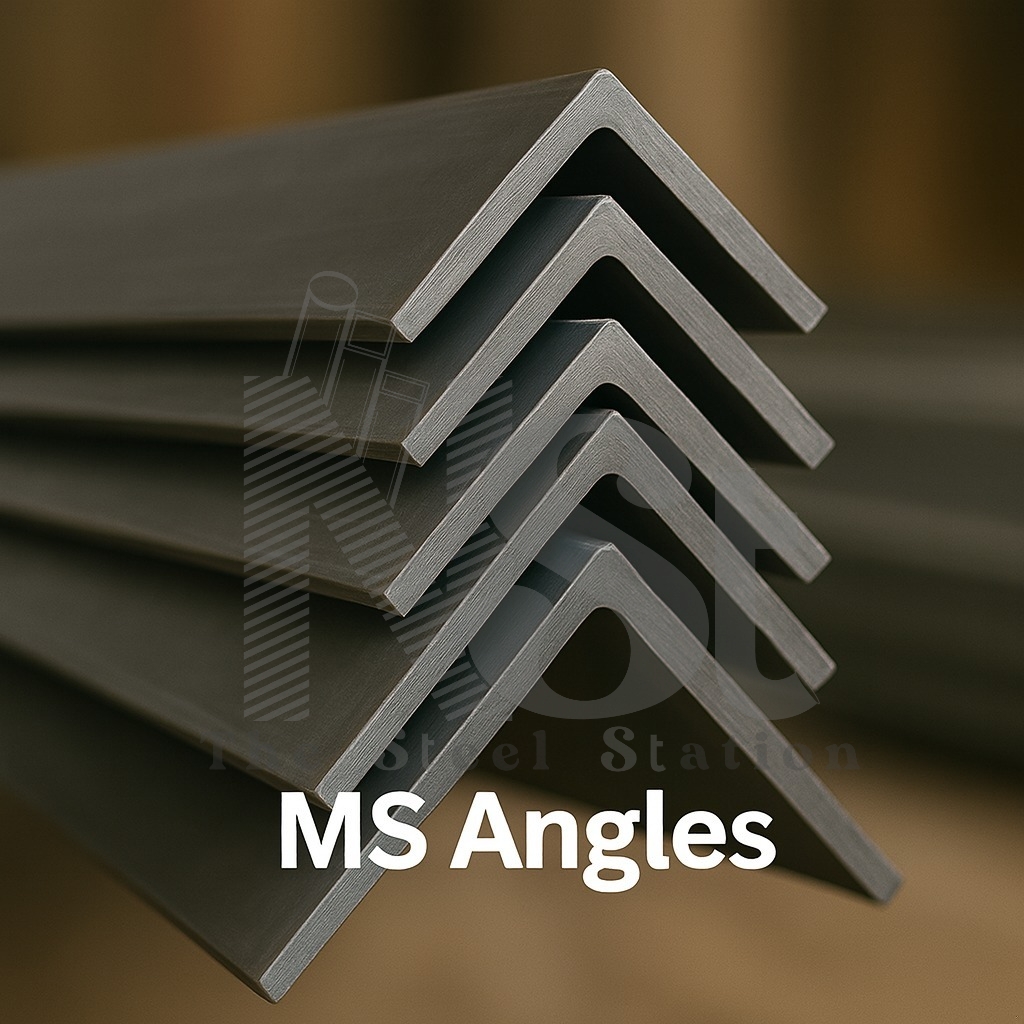

MS Angles

MS Angles are used in various construction, engineering and fabrication activities. ISA are available in Mild Steel Grades and High Tensile Grade
commonly used as HT Steel Grade as per Indian & International Specifications.

Make: SAIL, VIZAG, JSPL, Raipur Rolling

The standard supply length is 6mtr & 10 to 13 mtr. Specific length can also be supplied as per customer’s demand.

Leg length	Tolerance	Leg length	Camber
< 100 mm	±1.5 mm	< 100 mm	As per agreement
>= 100 mm	±2.0 mm	>= 100 mm	0.2% of length
	±2%

Tolerance on Sectional Weight

Thickness	Tolerance
Up to 3 mm	±5%
Over 3 mm	0.02

Size	Thickness	Sectional Area	Weight / Metre	Centre of Gravity	Moments of Inertia
A x B	T	a	W	Cxx=Cyy	Ixx=Iyy
(mm x mm)	(mm)	(cm2)	(Kg)	(cm)	(cm4)
25×25	3	1.41	1.1	0.71	0.8
	5	2.25	1.8	0.79	1.2
35×35	5	3.27	2.6	1.04	3.5
	6	3.86	3	1.08	4.1
40×40	5	3.78	3	1.16	5.4
	6	4.47	3.5	1.2	6.3
50×50	5	4.79	3.8	1.41	11
	6	5.68	4.5	1.45	12.9
65×65	5	6.25	4.9	1.77	24.7
	6	7.44	5.8	1.81	29.1
	8	9.76	7.7	1.89	37.4
	10	12	9.4	1.97	45
75×75	6	8.66	6.8	2.06	45.7
	8	11.38	8.9	2.14	59
	10	14.02	11	2.22	71.4
90×90	6	10.47	8.2	2.42	80.1
	8	13.79	10.8	2.51	104.2
	10	17.03	13.4	2.59	126.7
	12	20.19	15.8	2.66	147.9
100×100	6	11.67	9.2	2.67	111.3
	8	15.39	12.1	2.76	145.1
	10	10.03	14.9	2.84	177
	12	22.59	17.7	2.92	207
110×110	8	17.02	13.4	3	195
	10	21.06	16.5	3.08	238.4
	12	25.02	19.6	0.16	279.6
130×130	8	20.22	15.9	3.5	328.3
	10	25.06	19.7	3.58	402.7
	12	29.82	23.4	3.66	473.8
	16	36.81	28.9	3.78	574.6
150×150	10	29.03	22.8	4.06	622.4
	12	34.59	27.2	4.14	735.4
	16	42.78	35.8	4.26	896.8
	20	50.79	39.9	4.38	1084.9
200×200	12	46.61	36.6	5.36	1788.9
	16	57.8	48.5	5.49	2197.7
	20	68.81	60	5.61	2588.7
